Description

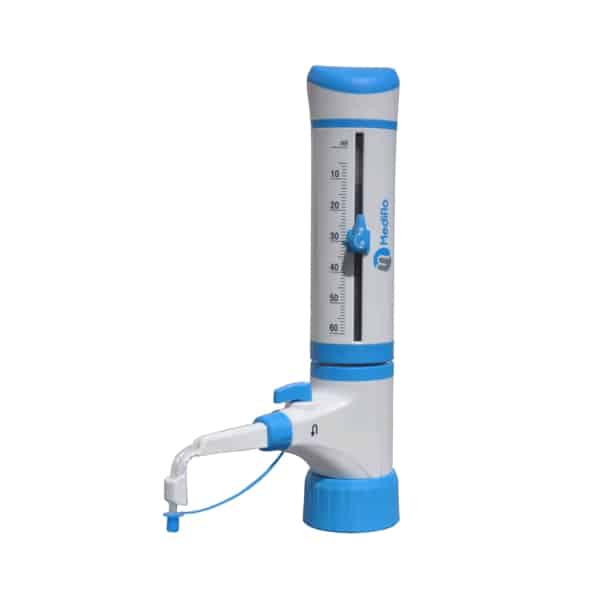

Affordable yet accurate our MediFlo range provides the next generation of highly robust and reliable dispensing.
Specifically designed to include a re-circulation valve for re-directing liquid into the bottle when priming/purging for bubble free dispensing without any loss of liquid.
- Adjustable Nozzle: for ease of dispensing
- Specially Designed Volume Adjustment Knob: 180° rotation for easy & effortless volume setting.
- 360° Rotation: Specially designed adaptor allows 360° rotation, providing full flexibility in working.
- Springless Valve: Specially designed, springless, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.
- Unique Piston: PTFE piston with ETP O-Ring ensures very high chemical compatibility & wiper like smooth, effortless piston movement.
- Calibration: Calibration tool is provided for convenient and quick in-lab user re-calibration. This is in compliance with GLO/ISO norm
| Component | Description |
| Piston | PTFE & ETP |
| Cylinder | Borosilicate Glass |
| Volume Adjustment Knob | PP. 180° Rotation |
| Valve Housing | PFA |
| Re-Circulation Valve Housing | PFA |
| Valve Assembly | Borosilicate Glass Ball & Seat |
| Discharge Assembly | PTFE |
| Delivery Tube | FEP |
| Inlet Tube | FEP |
| Calibration | Individually calibrated and certified. In-lab easy calibration by the user is also possible. |
| Accuracy & Reproducibility | In accordance with ISO 8655 standards |
| Compatibility | Excellent compatibility with all reagents except HF |
| Model no. | Vol. Range | Increment | ISO 8655 Specifications | Mediflo Specifications | ||||||
| Accuracy | CV | Accuracy | CV | |||||||
| ±% | ± ml | ±% | ± ml | ±% | ± ml | ±% | ± ml | |||
| DISP060 | 5-60 ml | 1.0 ml | 0.6 | 0.360 | 0.2 | 0.120 | 0.5 | 0.300 | 0.1 | 0.060 |
| DISP100 | 10-100 ml | 2.0 ml | 0.6 | 0.600 | 0.2 | 0.200 | 0.5 | 0.500 | 0.1 | 0.100 |
