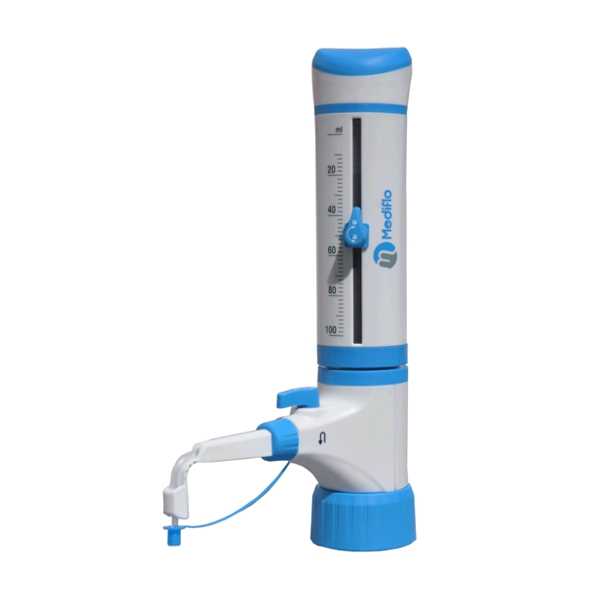

Bottle Top Dispenser 10-100ml (DISP100)

Description

Affordable yet accurate our MediFlo range provides the next generation of highly robust and reliable dispensing.



Specifically designed to include a re-circulation valve for re-directing liquid into the bottle when priming/purging for bubble free dispensing without any loss of liquid.



• Adjustable Nozzle: for ease of dispensing
• Specially Designed Volume Adjustment Knob: 180° rotation for easy & effortless volume setting.
• 360° Rotation: Specially designed adaptor allows 360° rotation, providing full flexibility in working.
• Springless Valve: Specially designed, springless, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.
• Unique Piston: PTFE piston with ETP O-Ring ensures very high chemical compatibility & wiper like smooth, effortless piston movement.
• Calibration: Calibration tool is provided for convenient and quick in-lab user re-calibration. This is in compliance with GLO/ISO norms.



Component	Description
Piston	PTFE & ETP
Cylinder	Borosilicate Glass
Volume Adjustment Knob	PP. 180° Rotation
Valve Housing	PFA
Re-Circulation Valve Housing	PFA
Valve Assembly	Borosilicate Glass Ball & Seat
Discharge Assembly	PTFE
Delivery Tube	FEP
Inlet Tube	FEP
Calibration	Individually calibrated and certified. In-lab easy calibration by the user is also possible.
Accuracy & Reproducibility	In accordance with ISO 8655 standards
Compatibility	Excellent compatibility with all reagents except HF





Model no.	Vol. Range	Increment	ISO 8655 Specifications				Mediflo Specifications
			Accuracy		CV		Accuracy		CV
			±%	± ml	±%	± ml	±%	± ml	±%	± ml
DISP060	5-60 ml	1.0 ml	0.6	0.360	0.2	0.120	0.5	0.300	0.1	0.060
DISP100	10-100 ml	2.0 ml	0.6	0.600	0.2	0.200	0.5	0.500	0.1	0.100
