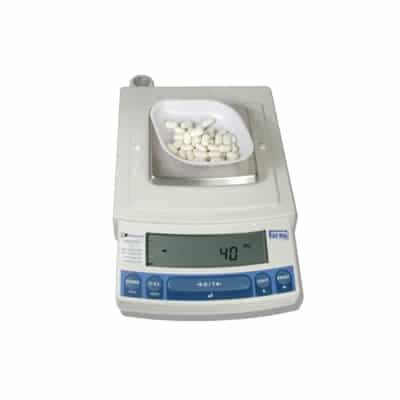

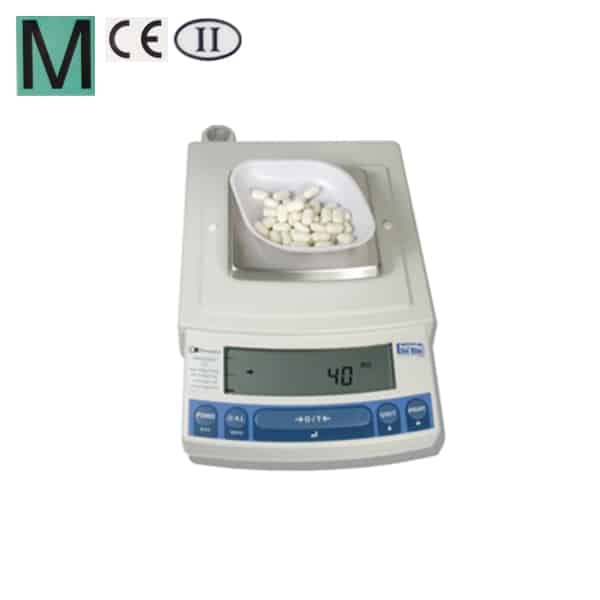

Approved for trade use the verified UW range of electronic balances are engineered with a UniBloc mechanism resulting in unrivalled response, stability and durability with a piece counting function for use within Pharmacy when counting tablets and capsules.
I want to upload measured data to a PC but installing the software is difficult……..
No Software Needed! The WindowsDirect function transmits data to a PC with just a cable. Achieve remarkable improvements in work efficiency with no additional investment, except for a cable. The standard auto print functions can be combined with the WindowsDirect function.
I always need to weigh accurately but calibrating my balance is tedious……..
Easy calibration for every application Calibrations are automatically performed upon detection of a temperature change (UW). The balance automatically calibrates itself at the set times with its built-in calibration weights (UW). Calibrations can also be made at any time with a simple key operation (UW). Span calibration of the UX Series is easily performed by placing calibration weights on the balance according to the displayed instructions.
I need to manage weighing according to international standards……..
Use the network-compatible software to ensure full compatibility with FDA 21 CFR Part 11. Fully-automatic calibration ensures accurate weighing (UW). Just connect an optional printer to automatically output time-stamped hard copies of calibration reports.
Adding CLASS-Agent Ver. 2.2, the network-compatible database registration and management tool, enables full compatibility with FDA 21 CFR Part 11 (Electronic Records, Electronic Signatures).
I work in a drafty, dark environment……..
Adjust the balance to match the environment The display stability can be adjusted to the environment. Windbreak is provided as standard for models with a 1mg display, and is n option for other models. The auto zero function is useful in an environment where the TARE key must be pressed for every measurement. The back lighted display provides a clear display in dark environments.
UniBloc one-piece force cell technology replaces the core mechanism of a high-precision balance with a single aluminium alloy lock. This provides a number of advantages, introducing fast response, high stability, and a long operational life.
Only a single cable is required to transfer balance data to MS Excel®, or other Windows® applications. No interface attachment or software installation is necessary. This unique function makes interfacing Shimadzu balances extremely convenient.
Automatic Touch-key Calibration (UW only)
Press just two keys to calibrate the balance whenever calibration is necessary.
PSC Fully-automatic Calibration
Introduced in 1985, this user-friendly feature triggers calibration when a temperature change is detected, automatically maintaining the balance’s sensitivity.
Clock-CAL Fully-automatic Calibration
Automatic calibration at pre-set times. Up to three times a day can be programmed.
GLP/GMP/ISO Calibration Record
Connect the optional printer to automatically output calibration results. Date and time are supplied by the balance’s built-in clock.
The backlight LCD display can be clearly read in the darkest of environments.
High-resolution models with a resolution of 1,020 g/1 mg can accurately detect minute changes in a large mass.
When upper and lower thresholds are set, the balance indicates if the sample weight is within the range (GO), over (HI) or under (LO).
The standard weight-below hook enables weighing on a user’s customized pan.
Specific Gravity Function
The standard specific gravity measurement calculation function uses the Archimedes principle. Attaching the optional specific gravity measurement kit allows the balance to be used as a density meter or a hydrometer.
A piece counting function is standard in addition to various unit conversions.
