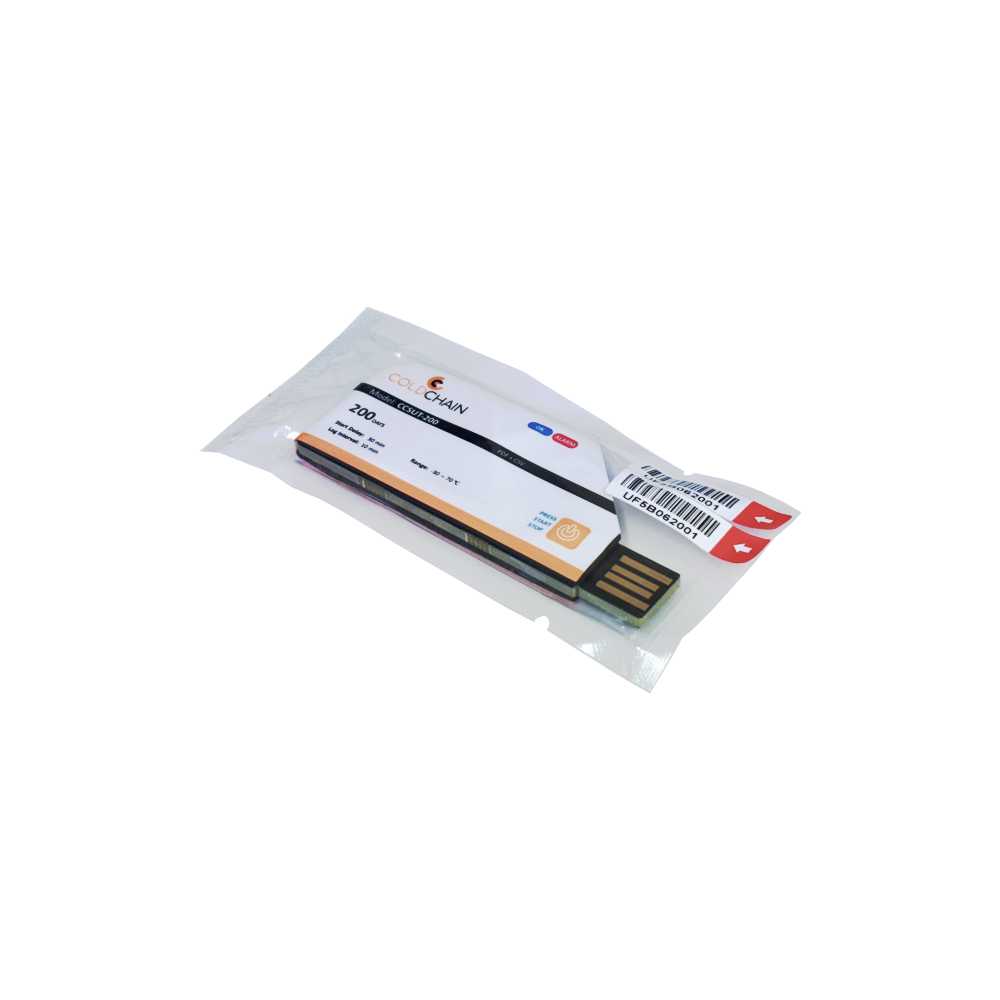

Single-Use PDF USB Data Logger (CCSUT-200) -30°C to +70°C

Description

A Reliable and Convenient Single-Use PDF USB Data Logger for Environment Monitoring



Key Features and Benefits



• Easy to use: The CCSUT-200 is pre-programmed and ready to use for tracking the temperature of sensitive products in transit. Just plug it into a USB port and access the data in PDF or CSV format.
• Accurate and comprehensive: The CCSUT-200 has an accuracy of +/- 0.5°C and provides detailed information on the temperature history, including graphs, tables, and statistics.
• Quality assured and compliant: The CCSUT-200 comes with a 6-point NIST traceable Certificate of Validation from Cold-Chain, ensuring that it meets your quality standards and regulatory requirements. It also complies with IATA’s Dangerous Goods Regulations, so you don’t need to worry about additional labelling.

Why Choose the CCSUT-200 for Your Cold-Chain Monitoring Needs?



The CCSUT-200 is a single-use data logger that offers a simple and effective solution for monitoring the temperature of your products during transportation. Whether you are shipping pharmaceuticals, vaccines, biologics, food, or other perishable goods, you can trust the CCSUT-200 to provide you with accurate and reliable data that helps you ensure the quality and safety of your products.

The CCSUT-200 is designed to be user-friendly and hassle-free. You don’t need any special software or hardware to use it. Just activate it, place it inside your package, and ship it. When you receive it, you can easily plug it into any USB port and view the data in PDF or CSV format. You can also print or email the data as needed.

The CCSUT-200 is also a quality assured and compliant device that meets your industry standards and regulations. It comes with a 6-point NIST traceable Certificate of Validation from Cold-Chain, which verifies its accuracy and performance. It also complies with IATA’s Dangerous Goods Regulations, which means you don’t need to apply any additional labels or stickers to your package.

With the CCSUT-200, you can have peace of mind that your products are monitored throughout the supply chain and that you can demonstrate compliance with your customers and regulators. The CCSUT-200 is a small device that delivers big results.



Specification



• Usage Type: Single-use (Max 200 days)
• Temperature Sensor: Texas Instruments (TI) brand digital sensor
• Temperature Measurement Range: -30°C ~ 70°C ( -22°F ~ 158°F)
• Temperature Accuracy: Range ±0.5°C (-20°C ~ +40°C); ±1°C for other range
• Resolution: 0.1°C
• Memory Capacity: Max 28800 readings
• Recording Duration: MAX Up to 200 Days
• Start Delay: 30 Min. (Standard, others on request)
• Logging Interval: 10 Min. (Standard, others on request)
• Shelf Life/ Battery 24 Months / 3.0V Lithium Battery
• Use Time: 200 Days use time with the 10min recording interval
• One key (Start/Stop/Status)
• Start-Up Options: Manual Start
• Alarm: LED OK(Blue) + Alarm(Red)
• Validation Certificate: Softcopy in Device Memory
• Standard Compliance: CE, RTCA/DO160G, UN38.3, ROHS, WEEE, EN12830
• Report: Encrypted PDF + CSV, get reports via USB2.0
• Thickness/Weight: 75 x 31 x 7.5 mm / 18g
• Storage temperature range: Recommended 20 to 60 %RH, -10 to 55°C
• Environmental Rating: IP67
• Package: Food grade plastic bag
