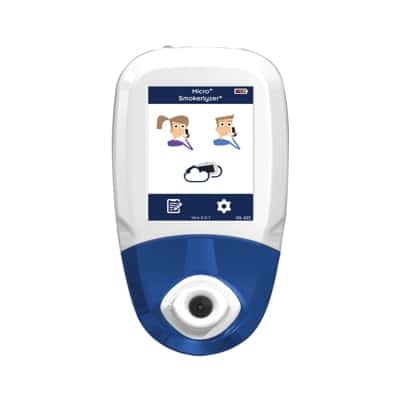

Micro+ Smokerlyzer (SMO003)

Description

What is it?



The Micro+ provides one CO monitor for your every need, including use in clinical research and setting the benchmark for use in smoking cessation services.



Benefits to the user Results are shown in exact ppm, %COHb and %FCOHb, for quicker recording and interpreting of patient’s results.



An easy to use colour touch screen provide visual prompts for patients during each test to ensure correct results every time. A familiar green, amber and red traffic light system helps to make CO levels instantly identifiable to patients. Auto calibration and D-Piece renewal reminders will help to ensure accurate readings and pro long the life of you monitor while improving infection control. Analyses carboxyhaemoglobin and carbon monoxide.



The monitor provides adult and adolescent profiles to ensure maximum motivation to stop smoking. Testing modes for adults, adolescents and pregnant women.



D-pieces are used in conjunction with the monitor to filter out 99.9% of airborne bacteria and single-use Steribreath™ mouthpieces for excellent, low cost infection control.



The Micro+ has storage for up to 100 readings and personal profiles. The monitor is PC interactive with COdata+ software, free with Micro+ Smokerlyzer®.



Product Specification



• Concentration range: 0-500pp
• Display: Full colour touchscreen
• Detection principle: electrochemical sensor
• Accuracy (repeatability of reading): < 3%
• H2 cross-sensitivity: < 5%
• Batteries: 3 x AA (LR6 or equivalent) alkaline batteries
• Response time: < 17 seconds
• Operating temperature range: 0-40C
• Operating humidity: 10-90% (Storage 0-95%) non-condensing
• Sensor operating life: 5 years – 5 year warranty
• Sensor sensitivity: 1ppm
• Dimensions Approx.: 34 x 75 x 140 mm
• Weight Approx.: 250g including batteries
• Construction: D-piece:  Polypropylene
• Sensor Drift: < 10% per annum
