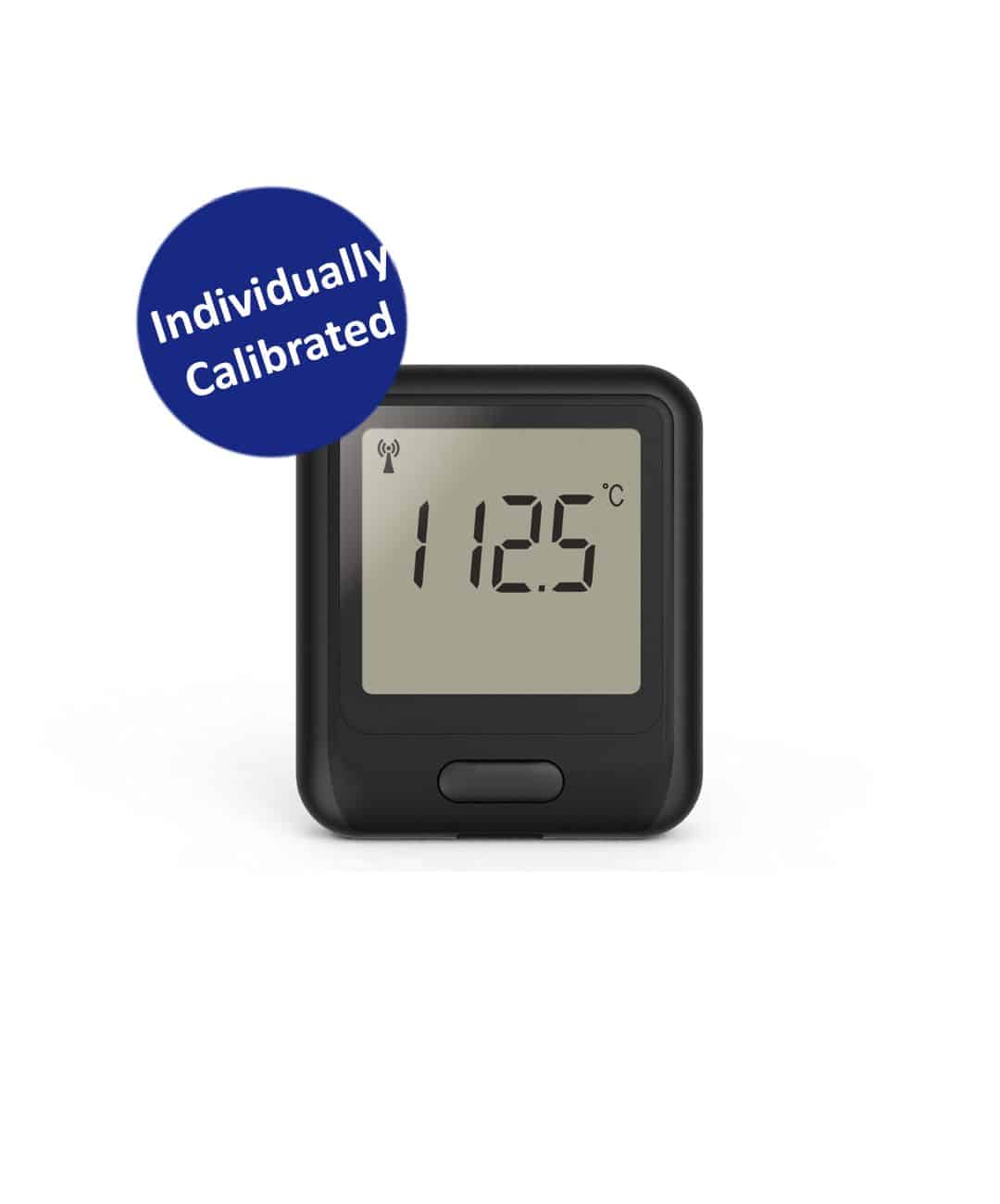

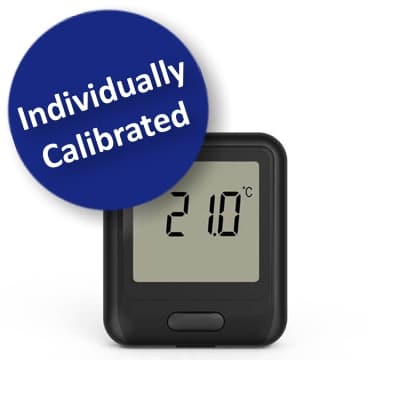

Calibrated WiFi Temperature Data Logging Sensor (LOGW-001C) -20 to +60°C (-4 to +140°F)

Calibrated WiFi Temperature Data Logging Sensor (LOGW-001C) -20 to +60°C (-4 to +140°F)

Calibrated WiFi Temperature Data Logging Sensor (LOGW-001C) -20 to +60°C (-4 to +140°F)

£103.08

(£123.70 inc VAT)

  • MHRA Compliant Calibrated Temperature Data Logger
  • Ideally suited for ambient and fridge storage areas
  • Measurement Range -20 to +60°C / -4 to +140°­F)
  • Accuracy ±0.5°C / ±1°F
  • Configurable high and low alarms

Please fill out all required fields before adding to basket.

CALIBRATION OPTIONS *

EXPRESS SERVICE *

Description

This WiFi-enabled data logger can remotely monitor an environment over a -20 to +60°C (-4 to +140°­­F) measurement range. Data is uploaded periodically using a standard WiFi network without the need to physically collect and connect the unit to a PC.



Features

  • Measurement Range -20 to +60°C / -4 to +140°­F
  • Accuracy ±0.5°C / ±1°F
  • Readings Unlimited
  • Logging Rate User selectable between 10 seconds and 12 hours
  • Battery Life 6 Months
  • Wirelessly stream and view data via WiFi on PC
  • Easy sensor set-up using free PC software application
  • View and analyse multiple sensors, including graphing of historic data
  • Configurable high and low alarms with indicator
  • Sensor memory stores all data even if WiFi is temporarily disconnected



Minimum Typical Maximum Unit
Battery life >6
USB supply voltage 4.5 5 5.5 Vdc
Operating temperature range -20 (-4) +60(+140) °C (°F)
Logging period (configurable) 10sec 10min 12nrs
Transmission period (configurable) 1min 1hr 24hrs
Temperature measurement range -20(-4) +60 (+140) °C (°F)
Temperature measurement resolution 0.1(0.2) °C (°F)
Temperature display resolution 0.5 °C
Temperature accuracy ±0.3°C/±0.6°F (+5 to +60°C/+41 to +140°F) ±0.8°C/±1.6°F (-20 to +60°C/-4 to +140°F) °C /°F
Dimensions

82 x 70 x 36mm (3.22×2.75×1.41”)

Additional information

Weight 0.0500 kg
Calibration Options

Ambient 0°C, 15°C, 30°C, Freezer -20°C, -10°C, 0°C, Fridge 0°C, 5°C, 10°C, Standard

Accuracy / Tolerances

±3.0/±6.0 (+5 to +60°C)

Model

LOGW-001C

Temp Range (*C)

-20 to +60°C (-4 to +140°F)
